An Integrated Sound Over The
Power Lines Audio Solution

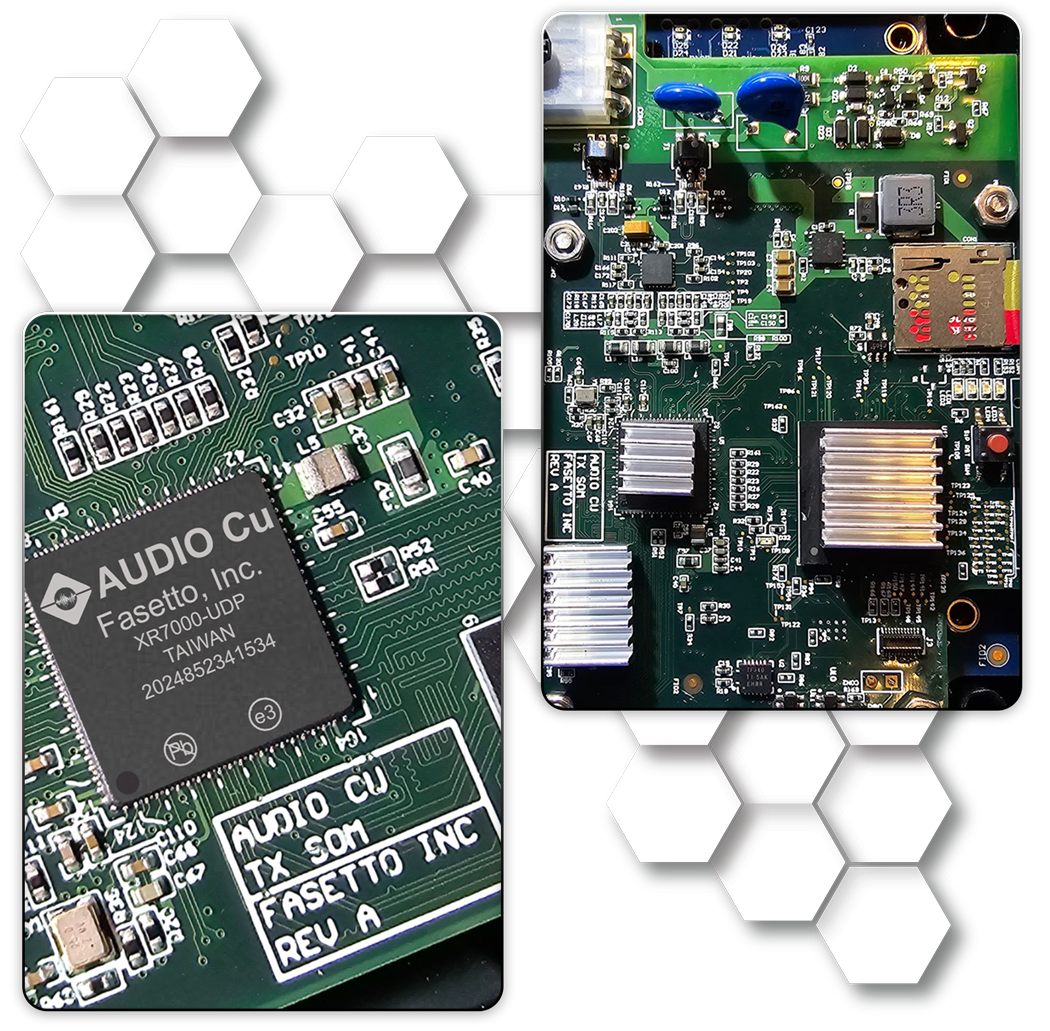

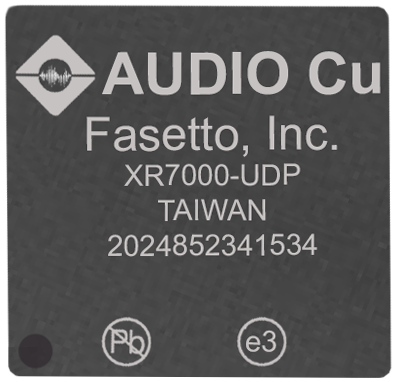

Integrate Sound Over Power Technology Into Your Product
The AUDIO Cu system on a module (SoM) sound solution takes asynchronous audio data and synchronizes it over the existing power lines in any environment. The AUDIO Cu SoM will embed audio over the power line technology onto a board that can be integrated into devices such as a TV, speaker, DJ controller, mixer board, etc. It will enable these devices to distribute the audio data to speakers and subwoofers in any multi-room system, event space, or establishment containing power with high resolution (Hi-Res), stereo, Dolby Digital®, Dolby TrueHD®, and Dolby Atmos® sound. This empowers device manufacturers and brands to create an entire ecosystem of AUDIO Cu enabled products.
Sound Is Sent Over
The Power Lines
SoM Product
Integration
Hi-Res & Dolby
Atmos® Audio
Unlimited Speaker Distance
Wired Speaker Compatible
Competitive
Advantage
Different Electrical
Legs & Breakers
No Bluetooth/Wi-Fi
Required For Audio
Immune To Interference

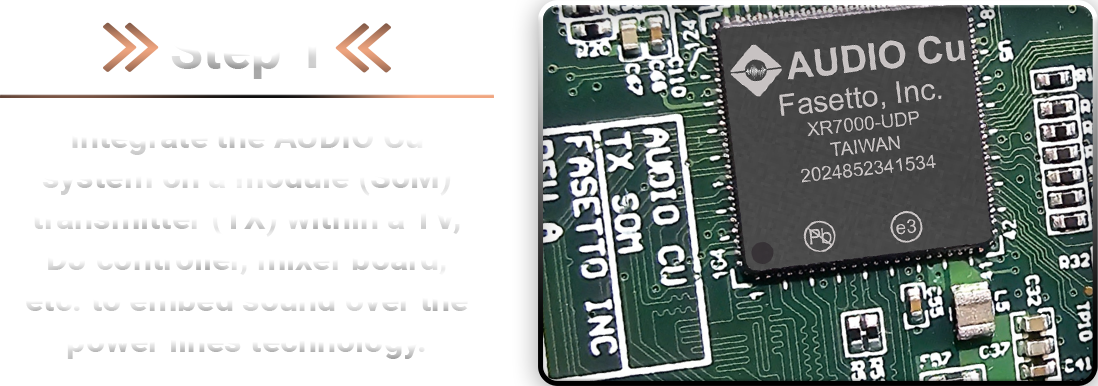

There is one (1) AUDIO Cu SoM transmitter (TX) unit that is required for each audio system. The AUDIO Cu SoM’s TX decodes the sound from the audio output device such as a TV, DJ controller, mixer board, etc. and moves the audio data through the power lines to each channel's AUDIO Cu SoM receiver (RX) unit. Once integrated, the AUDIO Cu SoM can detect noise on the power lines from devices such as vacuum cleaners, blow dryers, washing machines, etc. to determine the best way to send the packets of audio to the channel without any lag or hiccup in sound performance.
Integrate Sound Over Power Technology Into Your Product
The AUDIO Cu system on a module (SoM) sound solution takes asynchronous audio data and synchronizes it over the existing power lines in any environment. The AUDIO Cu SoM will embed audio over the power line technology onto a board that can be integrated into devices such as a TV, speaker, DJ controller, mixer board, etc. It will enable these devices to distribute the audio data to speakers and subwoofers in any multi-room system, event space, or establishment containing power with high resolution (Hi-Res), stereo, Dolby Digital®, Dolby TrueHD®, and Dolby Atmos® sound. This empowers device manufacturers and brands to create an entire ecosystem of AUDIO Cu enabled products.
There is one (1) AUDIO Cu SoM transmitter (TX) unit that is required for each audio system. The AUDIO Cu SoM’s TX decodes the sound from the audio output device such as a TV, DJ controller, mixer board, etc. and moves the audio data through the power lines to each channel's AUDIO Cu SoM receiver (RX) unit. Once integrated, the AUDIO Cu SoM can detect noise on the power lines from devices such as vacuum cleaners, blow dryers, washing machines, etc. to determine the best way to send the packets of audio to the channel without any lag or hiccup in sound performance.
Sound Is Sent Over
The Power Lines
SoM Product
Integration
Hi-Res & Dolby
Atmos® Audio
Unlimited Speaker Distance
Wired Speaker Compatible
Competitive
Advantage
Different Electrical
Legs & Breakers
No Bluetooth/Wi-Fi
Required For Audio
Immune To Interference
AUDIO Cu Sound Over Power Technology

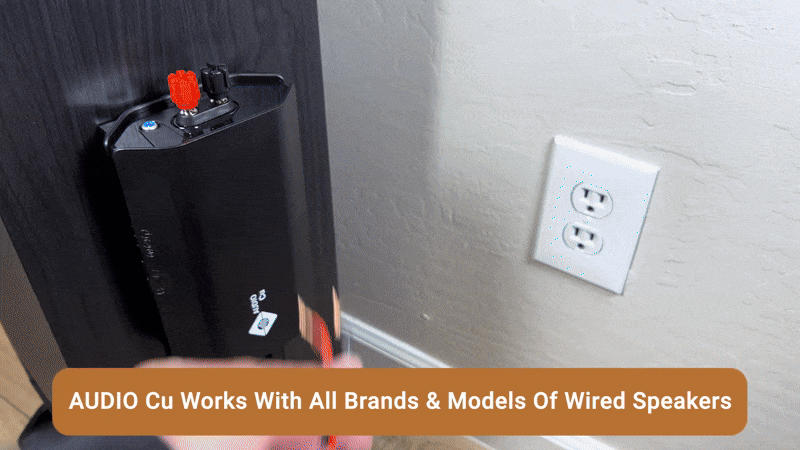

Works With All Wired Home & Pro Audio Speakers
The AUDIO Cu SoM is compatible with virtually all makes and models of current wired speakers out on the market. As long as the home or pro audio speakers have speaker terminals, audio brands can create an entire line of AUDIO Cu enabled speakers and subwoofers that will automatically work with companion products such as TV's, DJ controllers, mixer boards, etc.
Works With All Wired Home & Pro Audio Speakers
The AUDIO Cu SoM is compatible with virtually all makes and models of current wired speakers out on the market. As long as the home or pro audio speakers have speaker terminals, audio brands can create an entire line of AUDIO Cu enabled speakers and subwoofers that will automatically work with companion products such as TV's, DJ controllers, mixer boards, etc.
Delivers Hi-Res, Dolby Digital® & Dolby Atmos® Sound
The AUDIO Cu SoM is a plug and play sound over power solution that delivers full high fidelity, high resolution (Hi-Res), stereo, Dolby Digital®, Dolby TrueHD®, and Dolby Atmos® sound whether you’re gaming, viewing your favorite movie, or listening to your number one song! The AUDIO Cu SoM creates an entire audio network without all the interferences and limitations of inferior technologies. It will transport you into an immersive sound experience so you feel as if you’re actually there.
Delivers Hi-Res, Dolby Digital® & Dolby Atmos® Sound
The AUDIO Cu SoM is a plug and play sound over power solution that delivers full high fidelity, high resolution (Hi-Res), stereo, Dolby Digital®, Dolby TrueHD®, and Dolby Atmos® sound whether you’re gaming, viewing your favorite movie, or listening to your number one song! The AUDIO Cu SoM creates an entire audio network without all the interferences and limitations of inferior technologies. It will transport you into an immersive sound experience so you feel as if you’re actually there.
Create An Entire Suite Of AUDIO Cu Enabled Products
Embedding the AUDIO Cu system on a module (SoM) into various product lines such as TV's, speakers, and subwoofers, instantly integrates sound over the power lines technology. This will provide customers with a true multi-speaker home audio theater system that is plug-and-play. Gain a competitive edge over alternative brands that are using sub-par technologies such as Bluetooth, Wi-Fi, or WiSa/WiSA-e based systems.
No Structural Or Radio Frequency (RF) Interference
AUDIO Cu is a superior audio distribution platform that is immune to issues such as structural and radio frequency (RF) interference. Regardless of whether there is cement, stucco, or brick, as long as there is a standard 120VAC/240VAC, 50Hz or 60Hz wall outlet outlet, AUDIO Cu will perfectly send all sound over power.
Create An Entire Suite of AUDIO Cu Enabled Products
Embedding the AUDIO Cu system on a module (SoM) into various product lines such as TV's, speakers, and subwoofers, instantly integrates sound over the power lines technology. This will provide customers with a true multi-speaker home audio theater system that is plug-and-play. Gain a competitive edge over alternative brands that are using sub-par technologies such as Bluetooth, Wi-Fi, or WiSa/WiSA-e based systems.
No Structural Or Radio Frequency (RF) Interference
AUDIO Cu is a superior audio distribution platform that is immune to issues such as structural and radio frequency (RF) interference. Regardless of whether there is cement, stucco, or brick, as long as there is a standard 120VAC/240VAC, 50Hz or 60Hz wall outlet outlet, AUDIO Cu will perfectly send all sound over power.

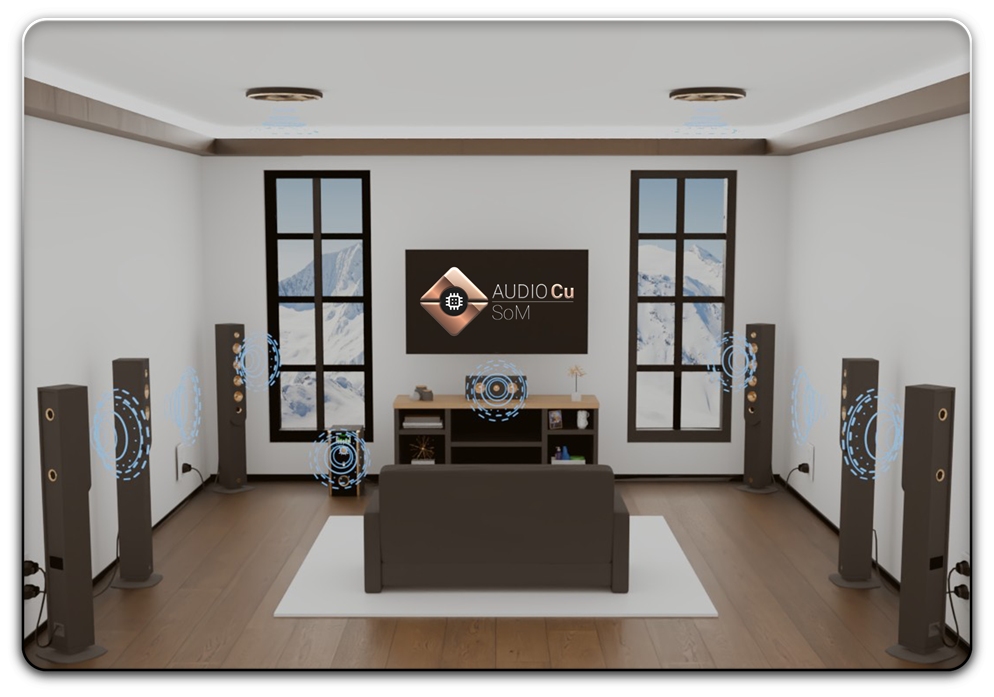

AUDIO Cu SoM In Action
Whether you’re a TV, speaker, DJ controller, mixer board, etc. manufacturer, we believe that the right multi-room or pro audio system should be easy to use and simple to install. Forget the days of being limited by structural and radio frequency (RF) interference, no competitive advantage over your competition, declining product sales, and inferior technologies such as WiSA, Bluetooth, and Wi-Fi. We have the solution for you called the AUDIO Cu SoM!
Simplify Audio System Installs
The AUDIO Cu system on a module (SoM) streamlines the audio integration process. No longer will consumers or integrators have to worry about running and hiding expensive speaker wire all over the place under carpets, in the walls, in the ceiling, or underground. The AUDIO Cu SoM makes any home audio system setup from 2.0 to 9.1 including Dolby Atmos® up to 7.1.2 a breeze with its unique and patented multi-room audio over power lines solution. Simplified exhibition and event pro audio installations will generate increased revenues for integrators by saving time, money, and materials. AUDIO Cu IP provides a robust embedded audio solution that works over multiple electrical circuits, legs, and junction boxes with superior audio quality and minimal latency.
Simplify Audio System Installs
The AUDIO Cu system on a module (SoM) streamlines the audio integration process. No longer will consumers or integrators have to worry about running and hiding expensive speaker wire all over the place under carpets, in the walls, in the ceiling, or underground. The AUDIO Cu SoM makes any home audio system setup from 2.0 to 9.1 including Dolby Atmos® up to 7.1.2 a breeze with its unique and patented multi-room audio over power lines solution. Simplified exhibition and event pro audio installations will generate increased revenues for integrators by saving time, money, and materials. AUDIO Cu IP provides a robust embedded audio solution that works over multiple electrical circuits, legs, and junction boxes with superior audio quality and minimal latency.
Before AUDIO Cu SoM Integrated
After AUDIO Cu SoM Integrated
AUDIO Cu Home Product Overview
• Quadcore Advanced Harvard Architecture DSP
• Quadcore Cortex-A53 Core Platforms Up To 1.8GHz Per Core
• 32KB L1-I Cache / 32KB L1-D Cache
• 512KB L2 Cache
• 1x Cortex-M4 Core Up To 400MHz
• 16 KB L1-I Cache / 16 KB L2-D Cache
• 5x SAI (12Tx + 16Rx External I2S Lanes), 8Ch PDM Input
• 1x Gigabit Ethernet (MAC) With AVB
• AUDIO Cu Powerline MIMO 50MHz (& SISO 50MHz)
• Coexistence With HPAV/2
• External Memory Support DDR3
• Embedded IP Stack, TR69
• ITU-T (G.9960/1/2/3/4) [1, 2, 3, 4, 5] Stack Protocols
AUDIO Cu SoM Specifications
• Quadcore Advanced Harvard Architecture DSP
• Quadcore Cortex-A53 Core Platforms Up To 1.8GHz Per Core
• 32KB L1-I Cache/ 32KB L1-D Cache
• 512KB L2 Cache
• 1x Cortex-M4 Core Up To 400MHz
• 16KB L1-I Cache / 16KB L2-D Cache
• 5x SAI (12Tx + 16Rx External I2S Lanes), 8Ch PDM Input
• 1x Gigabit Ethernet (MAC) With AVB
• AUDIO Cu Powerline MIMO 50MHz (& SISO 50MHz)
• Coexistence With HPAV/2
• External Memory Support DDR3
• Embedded IP Stack, TR69
• ITU-T (G.9960/1/2/3/4) [1, 2, 3, 4, 5] Stack Protocols
The Best Way To Create Your Home Multi-Room Or Pro Audio System
The AUDIO Cu system on a module (SoM) provides device manufacturers with the necessary technological advantage over their competition who is currently using inferior audio connection platforms. The innovative AUDIO Cu SoM utilizes eARC/ARC, XLR, RCA, or ¼ inch TRS jack inputs to decode the sound on the fly to flawlessly match the source material. This enables regular consumers as well as pro audio integrators access to an entire new line of AUDIO Cu enabled products that will generate more revenue due to ease of use and expansive architecture.
Sound Over Power Advantages
Home Audio Product Solution
Consumers can purchase an AUDIO Cu enabled TV, AUDIO Cu enabled speakers, and literally plug them in anywhere in their apartment, town home, or house and they are ready to be entertained. Consumers can now have a true multi-speaker home audio theater system without all the expensive renovations and limitations of wired systems.
Pro Audio Product Solution
DJ's, entertainers, and integrators spend countless hours on running audio cable to get ready for shows and events. An AUDIO Cu enabled DJ controller, mixer board, PA system, etc. would now be plug and play compatible with AUDIO Cu enabled pro audio speakers and subwoofers. Saving time, money, and materials will increase the bottom line with a lowered overhead.
Carbon Footprint Reduction
The AUDIO Cu SoM eliminates the requirement for running speaker wire thus greatly reducing copper needs. It also reduces manufacturing, logistics, and labor related pollution.
Sound Over Power Advantages
Home Audio Product Solution
Consumers can purchase an AUDIO Cu enabled TV, AUDIO Cu enabled speakers, and literally plug them in anywhere in their apartment, town home, or house and they are ready to be entertained. Consumers can now have a true multi-speaker home audio theater system without all the expensive renovations and limitations of wired systems.
Pro Audio Product Solution
DJ's, entertainers, and integrators spend countless hours on running audio cable to get ready for shows and events. An AUDIO Cu enabled DJ controller, mixer board, PA system, etc. would now be plug and play compatible with AUDIO Cu enabled pro audio speakers and subwoofers. Saving time, money, and materials will increase the bottom line with a lowered overhead.
Carbon Footprint Reduction
The AUDIO Cu SoM eliminates the requirement for running speaker wire thus greatly reducing copper needs. It also reduces manufacturing, logistics, and labor related pollution.
AUDIO Cu SoM Electrical Compatibility
Works With Electrical Outlets On Different Breakers
Works With Electrical Outlets On Different Legs
A product integrated AUDIO Cu SoM works practically in any apartment, condominium, town home, house, or venue regardless of whether it is plugged into different outlets that are located on different electrical legs, circuit breakers, junction boxes, or connected junction boxes. The AUDIO Cu SoM works with the following: 120VAC/240VAC, 50Hz or 60Hz. The AUDIO Cu SoM fully supports 24/192 formats with 24 bits resolution at a 192kHz sampling rate. The AUDIO Cu SoM eliminates noise over the power lines caused by electronic devices and appliances to determine the best way to send the packets of audio to each speaker or subwoofer without any lag or hiccup in sound performance.
AUDIO Cu SoM Electrical Compatibility
Works With Electrical Outlets On Different Breakers
Works With Electrical Outlets On Different Legs
A product integrated AUDIO Cu SoM works practically in any apartment, condominium, town home, house, or venue regardless of whether it is plugged into different outlets that are located on different electrical legs, circuit breakers, junction boxes, or connected junction boxes. The AUDIO Cu SoM works with the following: 120VAC/240VAC, 50Hz or 60Hz. The AUDIO Cu SoM fully supports 24/192 formats with 24 bits resolution at a 192 kHz sampling rate. The AUDIO Cu SoM eliminates noise over the power lines caused by electronic devices and appliances to determine the best way to send the packets of audio to each speaker or subwoofer without any lag or hiccup in sound performance.

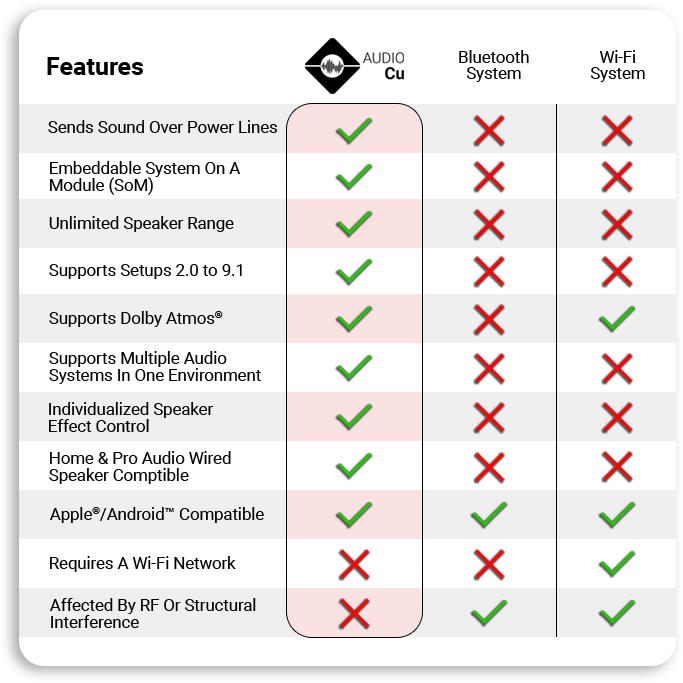

AUDIO Cu SoM vs. Competition

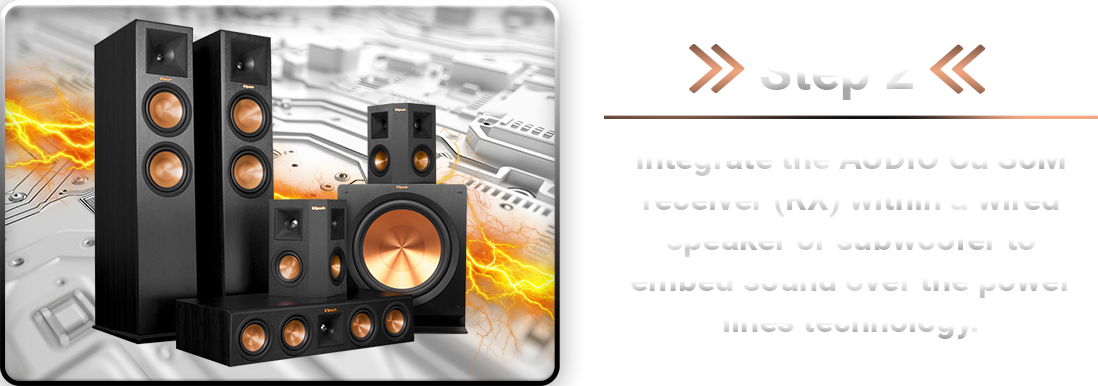

How The AUDIO Cu SoM Works
How The AUDIO Cu
SoM Works
